Building system MAX PLUS
Maxplus and Maxplus Aku are new modern building technologies using the Medmax system. The main advantages are maximum thermic protection of buildings, environmental friendliness, affordability and energy savings. Intended mainly for passive and low energy houses.
Build precisely

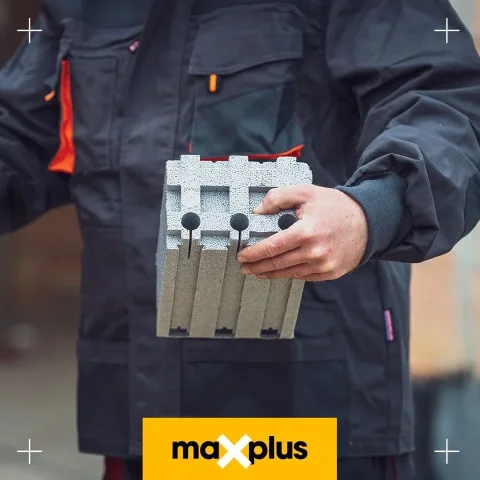

The block connects a special locking system and plastic partitions. The system also includes end plugs and lintel parts. The core is made of reinforced concrete monolithic construction, which accepts perfect airtightness of packaging.
Thanks to this, the Maxplus system is designed especially for the implementation of passive and energy-efficient houses.
Thanks to this, the Maxplus system is designed especially for the implementation of passive and energy-efficient houses.
Build easily
The result is a slim monolithic wall with a reinforced concrete core, characterized by high strength and resistance to external influences. The implementation of projects takes place without heavy construction equipment and classic masonry professions and is feasible under any climatic conditions.
Maxplus building system
The Maxplus system is laid from the corner of the building on a common base plate on which a waterproofing layer has already been applied.After setting the desired shape, the first layer of concrete is poured by hand, which fixes the wall to the base plate.
Further concreting can be performed using a concrete pump.
Fittings

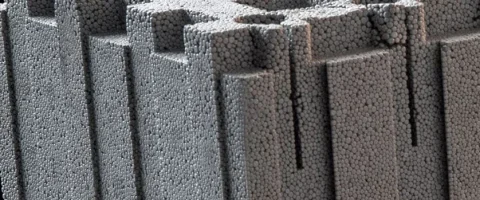

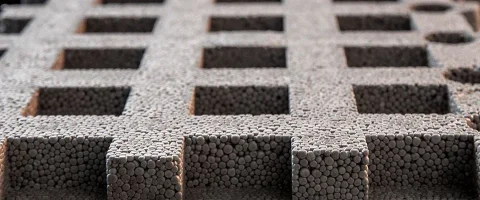

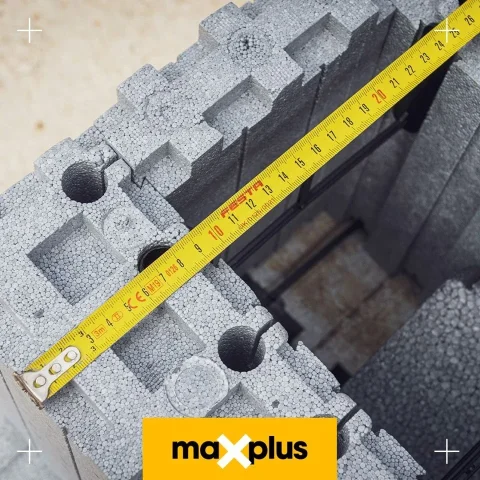

The basis of the system are fittings with thicknesses of 300, 250, 200, 150 and 100 mm, which can be combined in an adaptable way.
Production dimensions of fittings are 1200 x 250 x 100-300 mm. They are made of gray polystyrene with very low thermal conductivity.
Fasteners
The connection of internal and external fittings is performed using two types of plastic partitions. Large partitions are available at the top of the screen, there are prepared wires that are placed on the borders of the reinforcement.
The small partitions are used to connect the lower part of the fittings when laying the first row, to strengthen the corners or to fasten the lintel and end plug.
Other elements
End plugs are used for finishing walls and lining solutions for various types of openings. Their production dimensions are 250 x 150 x 50 mm.
The lintel parts are used to close the lintels and window sills. Their production dimensions are 1000 x 150 x 50 mm.
